VP20 Blood Pressure Watch
A 1.95-inch rectangular AMOLED health watch built around an air-pump blood-pressure measurement path, Bluetooth calling and a slim 12.6 mm body. VP20 combines a clear on-watch dashboard with health reports, reminders and everyday connected-watch tools.
A slimmer rectangular platform for connected health routines.
The VP20 product material centres on an air-pump blood-pressure measurement path, a larger rectangular display and app-connected health management. The capabilities below come from the supplied VP20 specification and product visuals.
Air-pump measurement
Dedicated TPU airbag in the strap, one-touch measurement and an on-watch display for blood-pressure and pulse values.
Bluetooth connection
Bluetooth calling, contact synchronisation, notifications, music control and a connected companion-app workflow.
Health reports and reminders
Blood-pressure history, heart-rate records, daily/weekly/monthly reports and medication, water and sedentary reminders.
Activity and smart tools
19 sports modes plus voice assistant, local music, weather, recorder, remote selfie, alarms and find-device tools.

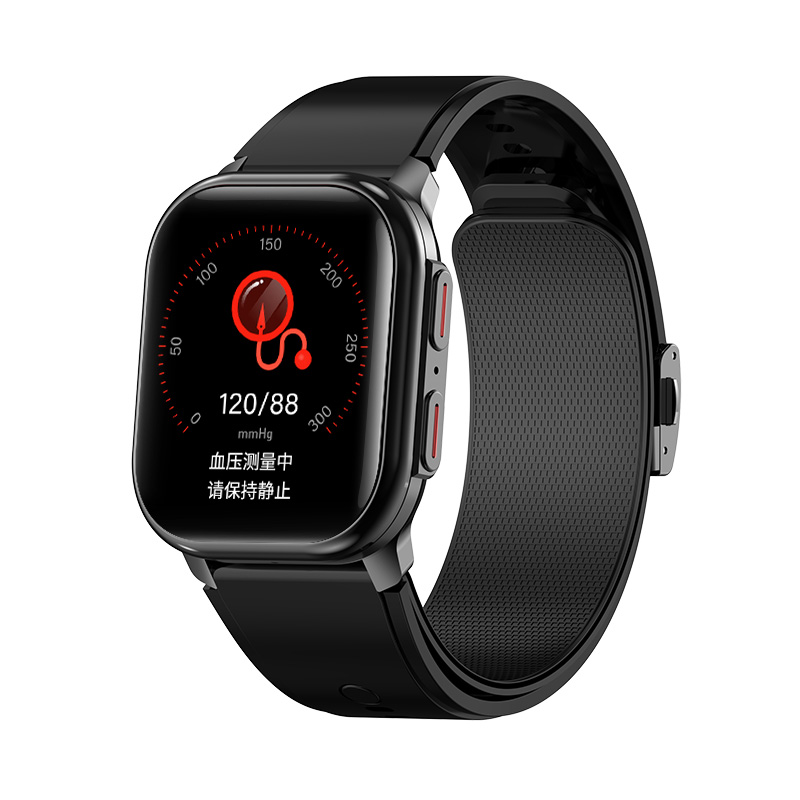

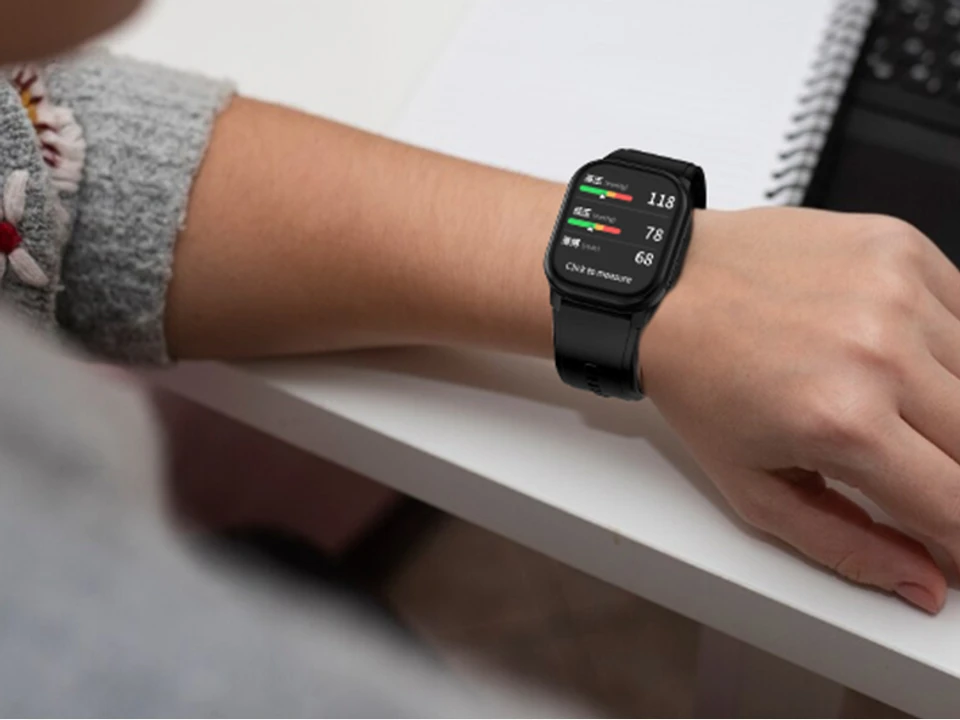

One-touch wrist measurement
Start a measurement on the watch and review the displayed values without removing everyday clothing.

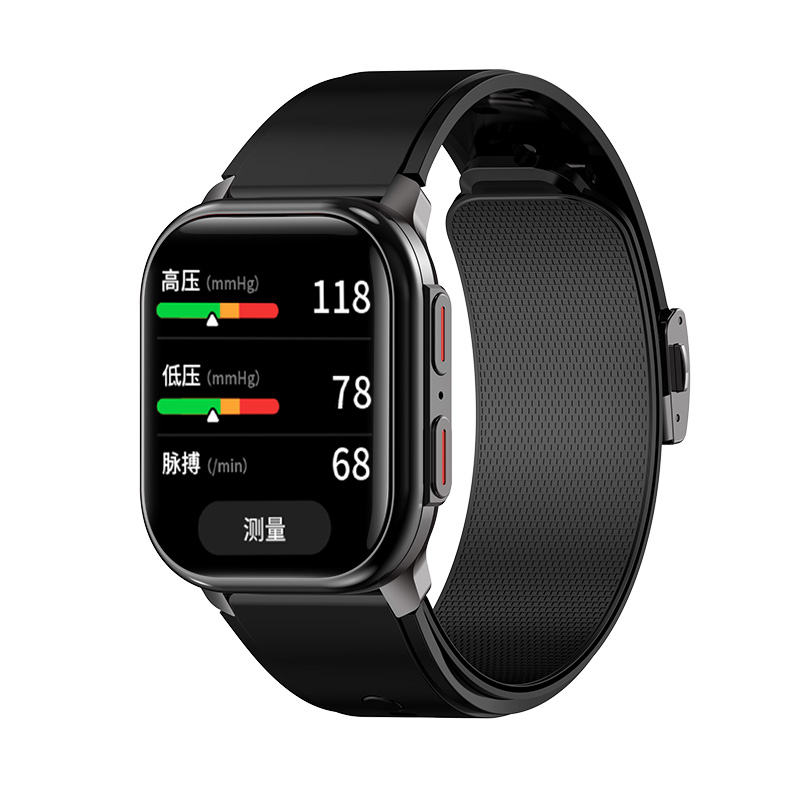

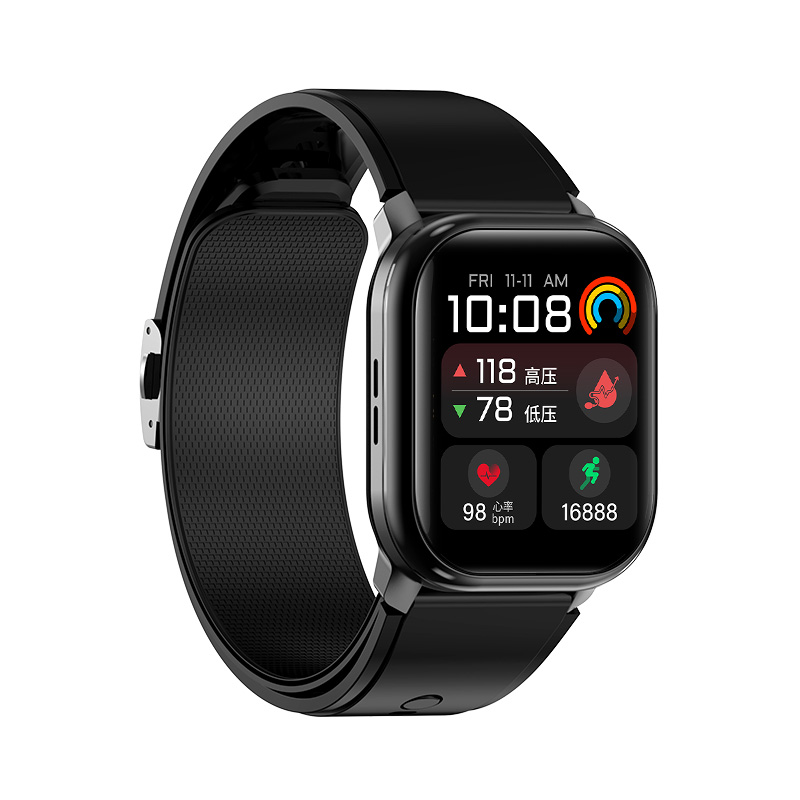

Integrated pump and airbag
The dedicated airbag sits inside the strap and inflates during the measurement cycle.

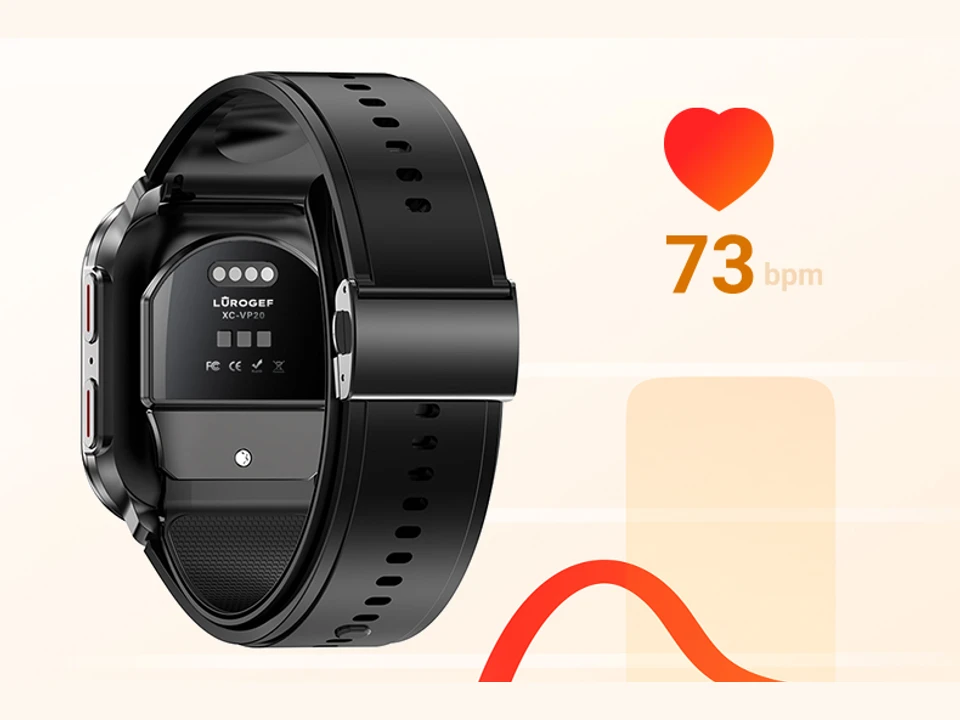

Everyday health tracking
The product interface brings blood pressure, heart rate, blood oxygen and sleep records into one wearable dashboard.
Connected family care
The supplied app visuals show permission-based sharing of blood-pressure, activity and other health records with family members.

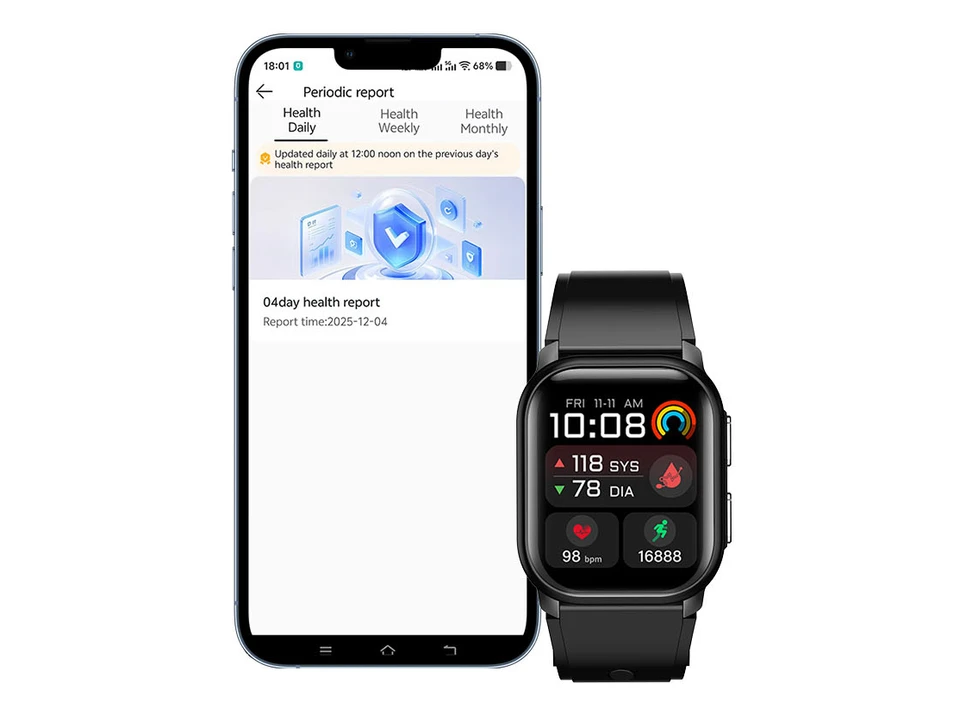

Daily, weekly and monthly reports
Review longer-term patterns across blood pressure, heart rate, oxygen, sleep and activity in the companion app.

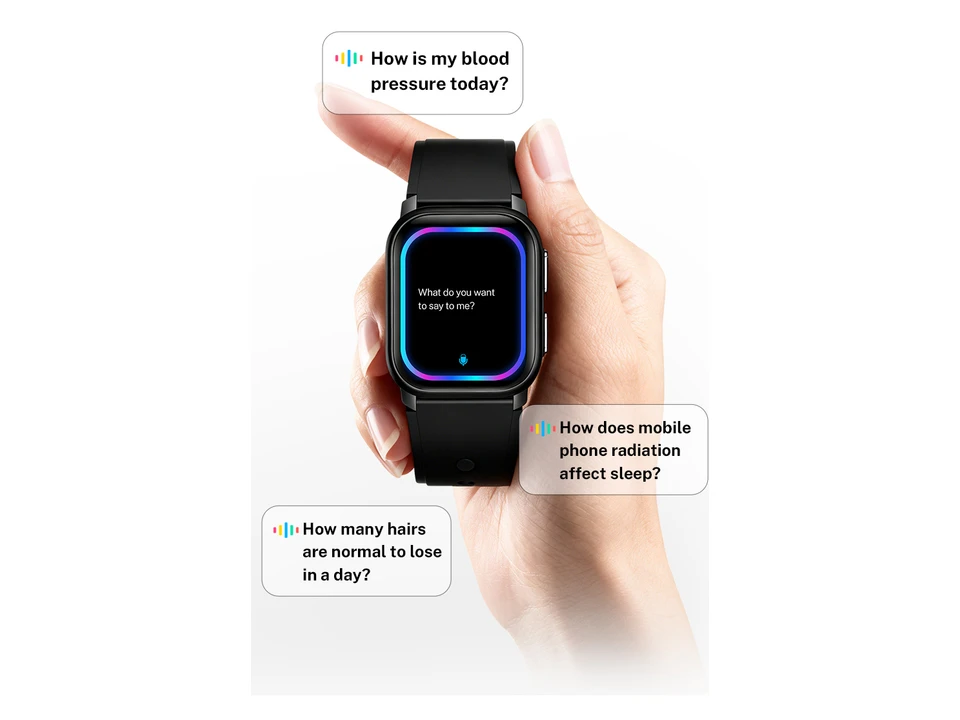

Voice assistant and watch control
Use voice interaction for everyday questions and supported watch-control actions; medical advice is not implied.
Key Engineering Highlights
VP20 combines a larger display, a thinner enclosure and a dedicated wrist airbag in one Bluetooth-connected platform.
Expansive 1.95-inch AMOLED Display
The 410×502 panel provides room for larger values, multi-line menus, measurement steps and health-history views.
Compact 12.6 mm Profile & Lightweight Body
The documented body measures 12.6 mm thick and 74.4 g including the strap and airbag assembly, with a zinc-alloy bezel and plastic body.

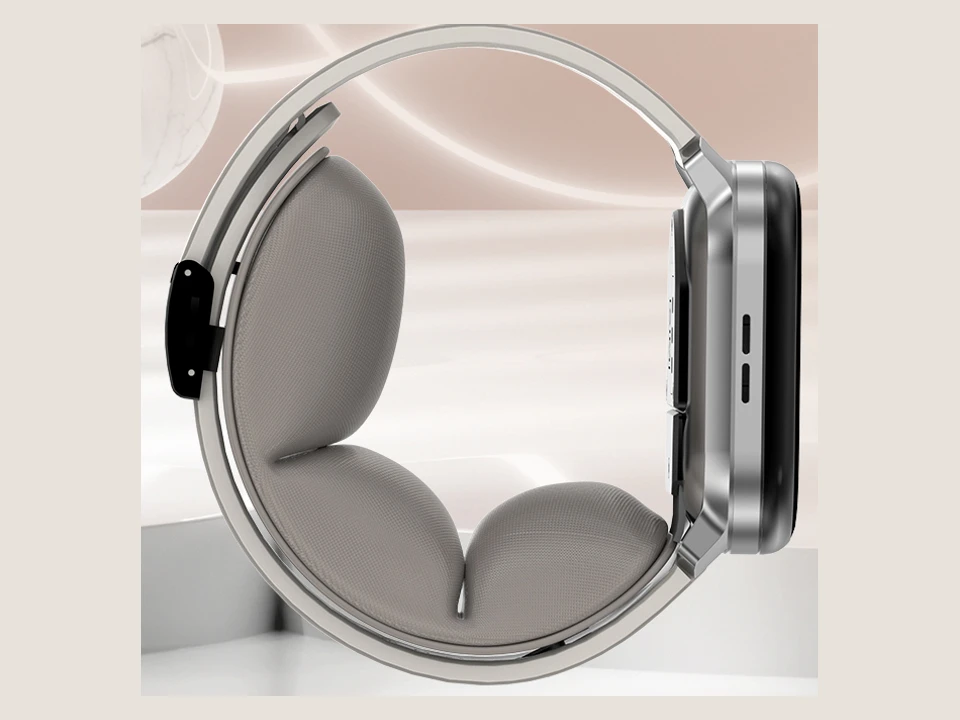

Dedicated Conformal Airbag Assembly
The dedicated TPU airbag is integrated inside the silicone strap and inflates as part of the watch's documented air-pump measurement cycle.
Measurement Posture & Workflow
- 1. Fasten the watch snugly on the wrist, approximately one finger width back from the styloid process.
- 2. Position your arm across your chest so the watch display rests at heart height.
- 3. Tap the measurement icon and hold still during pressurization and gradual deflation.
- 4. View systolic and diastolic readings directly on-screen or sync to the app via Bluetooth.
Operational Boundaries & Restrictions
- ✕ No Submersion or Water Activities: Air vents and pressure sensors must not be exposed to swimming, bathing, or heavy water immersion.
- ✕ No Optical Blood Glucose: Does not support non-invasive glucose detection; claims of this type are unverified.
- ✕ No Diagnostic Claim: The supplied specifications describe hardware and functions; they do not establish a diagnosis, treatment or clinical-accuracy claim.
Technical Specifications
Hardware and operational specifications from our model documentation.
| Specification Item | Details / Parameter |
|---|---|
| Product Model | VP20 |
| Core Platform / CPU | JL701X wireless low-power SoC |
| Internal Memory | 128Mb (source specification notation) |
| Optical Sensor Module | HX3918 optical heart-rate sensor |
| Operating System | Low-power embedded RTOS |
| Display Panel | 1.95-inch AMOLED rectangular touch display, 410×502 resolution |
| Pixel Density (PPI) | 332 PPI (source recorded) |
| Battery & Power | 3.8 V / 390 mAh polymer lithium battery with integrated NTC protection |

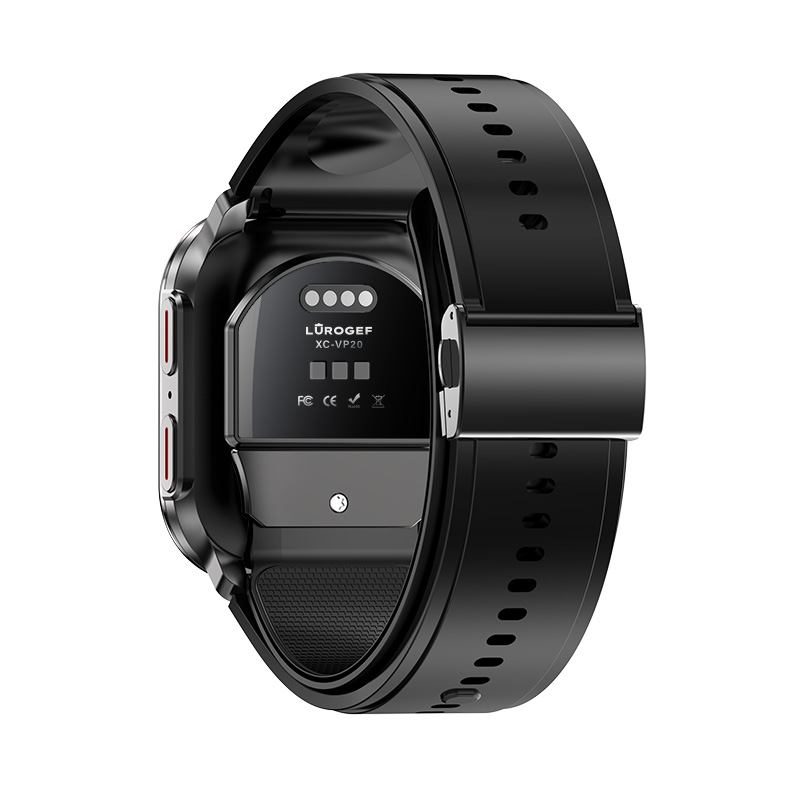

| Charging Interface | Dedicated 4-pin magnetic charging & data interface |
| Structural Materials | Zinc-alloy bezel, high-strength engineering plastic, stainless steel, tempered glass, silicone strap |
| Strap & Airbag | 24 mm silicone strap (options: long 119/137 mm, short 76.6 mm) with integrated dedicated curved TPU airbag |
| Dimensions & Weight | 41.0 × 48.6 × 12.6 mm; approximately 74.4 g (lightweight baseline including strap and airbag) |
| Packaging Specifications | Individual gift box 140×140×80 mm (371.5 g); Carton 50 units/ctn (19.5 kg, 73×29.5×43 cm) |
| Mobile Application | LUROGEF reference companion app; enterprise companion-app and interface scope is confirmed during project scoping |
| Water Resistance | IP67 — short-term shallow-water immersion only; not a swimming permission and not hot water |
| Connectivity Architecture | Bluetooth Low Energy (BLE) high-efficiency baseline |
OEM & ODM Customization Scope
Custom integration solutions for healthcare providers, eldercare platforms, and consumer technology brands.
UI & Dashboard
Custom rectangular dashboard layouts, enterprise branding, specialized large-font senior modes, and custom dials.
Data Hand-off
How readings reach an existing corporate health database or a proprietary app is scoped per project. No interface inventory is confirmed for this model, so none is published as available.
Industrial Styling
Custom chassis anodizing, strap texture and color customization, and custom silicone strap sizing.
Compliance Support
Provision of bench testing data, EMC/RF reports, biocompatibility documentation for TPU airbags, and factory quality audits.
