VC61 Blood Pressure Watch
Circular 1.43-inch AMOLED health watch combining an air-pump blood-pressure measurement path with a dedicated TPU airbag, Bluetooth calling, health reports and a stainless-steel and leather-finish design.
A refined Bluetooth platform for daily health routines.
The VC61 materials combine an air-pump blood-pressure measurement path with health reports, reminder tools and a dress-watch finish. The capabilities below come from the internally consistent VC61 specification and supplied product visuals.
Air-pump measurement
Dedicated TPU airbag in the strap, one-touch measurement flow and on-watch display for blood-pressure and pulse readings.
Bluetooth companion
Bluetooth voice calling, synchronized contacts, app notifications, music controls and remote-care functions.
Health routines
Heart-rate, blood-oxygen and sleep features, daily/weekly/monthly health reports and medication, water and sedentary reminders.

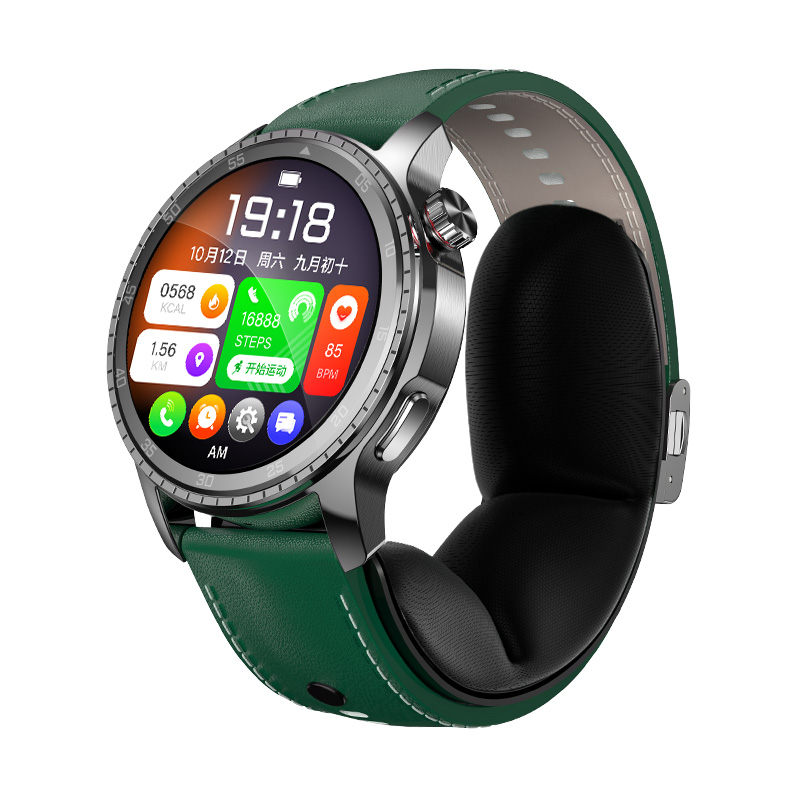

Activity and smart tools
19 sports modes plus voice assistant, local music, recorder, weather, alarms, remote selfie control and find-device tools.

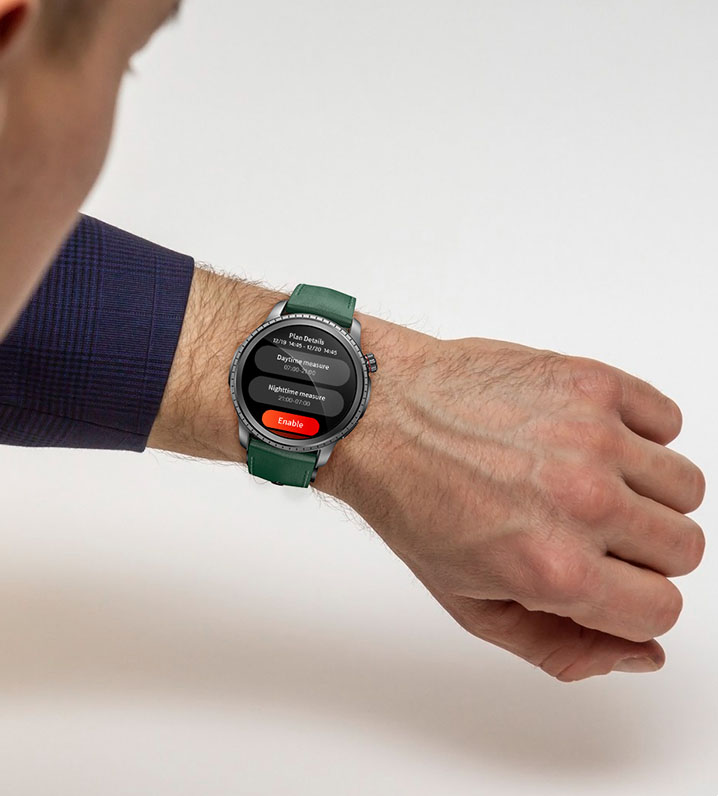

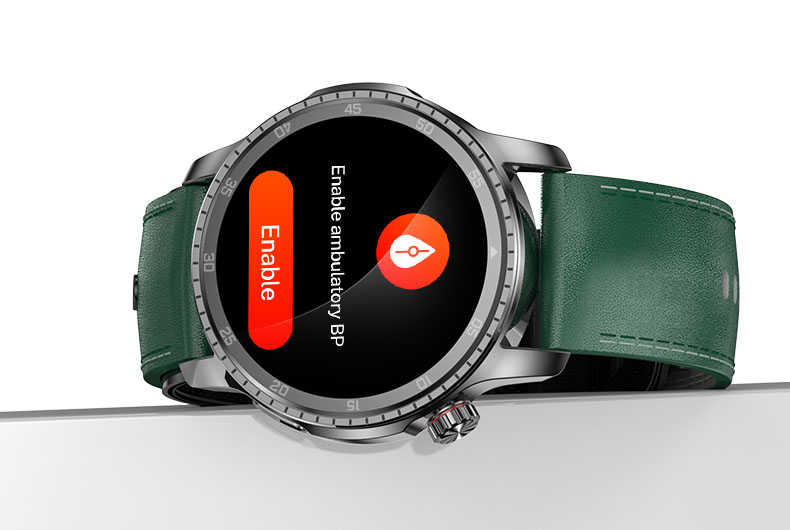

Scheduled measurement routines
The supplied interface visual shows an ambulatory blood-pressure schedule. Programme timing and clinical interpretation require separate validation.

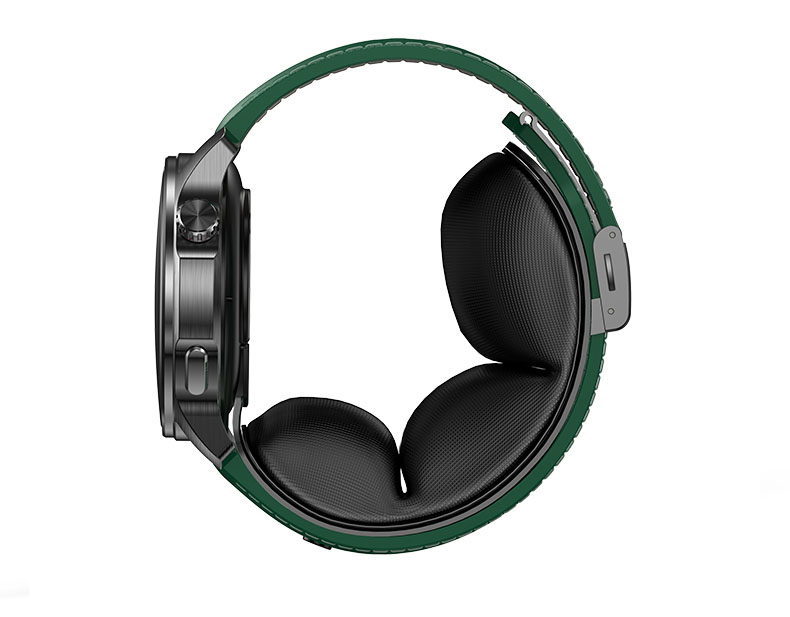

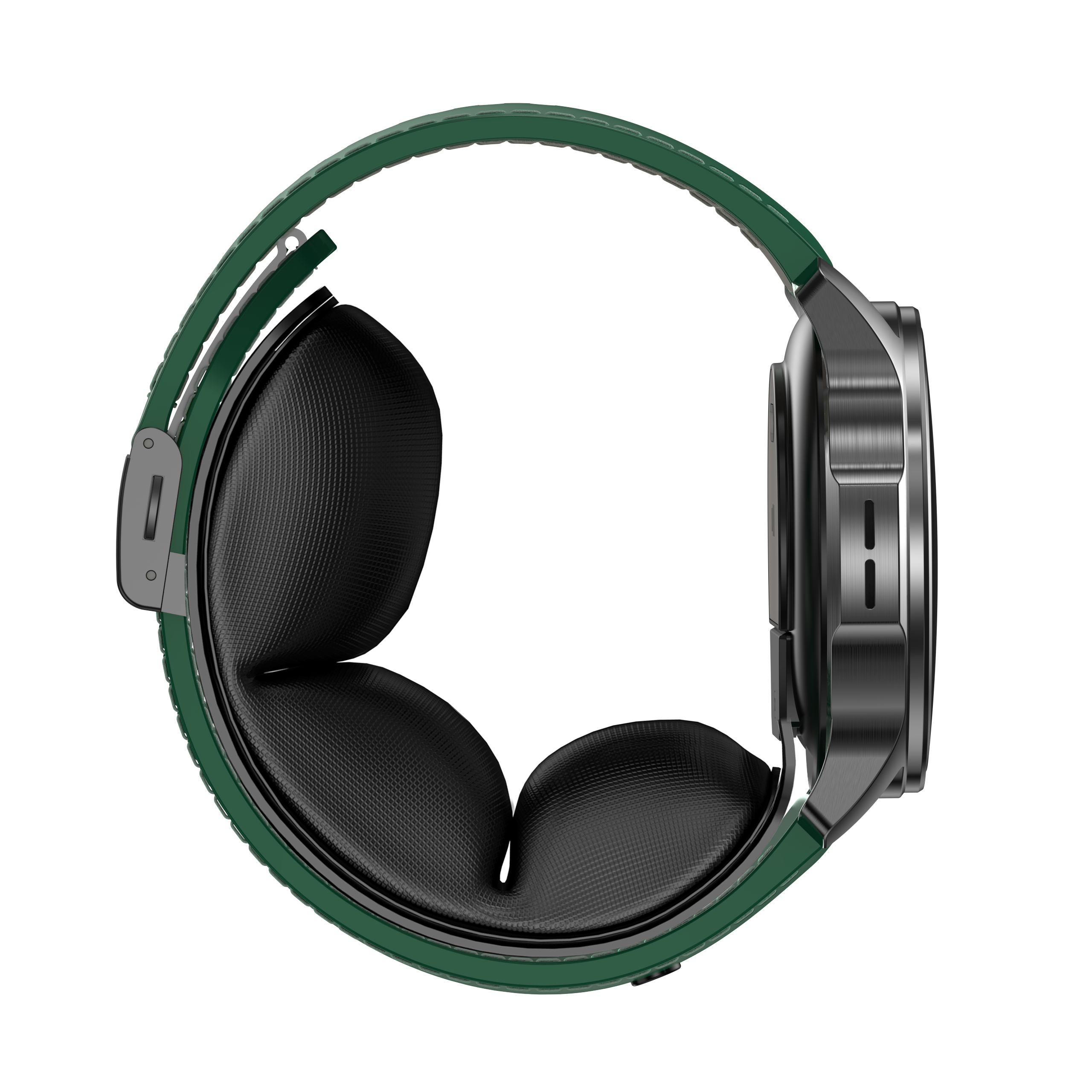

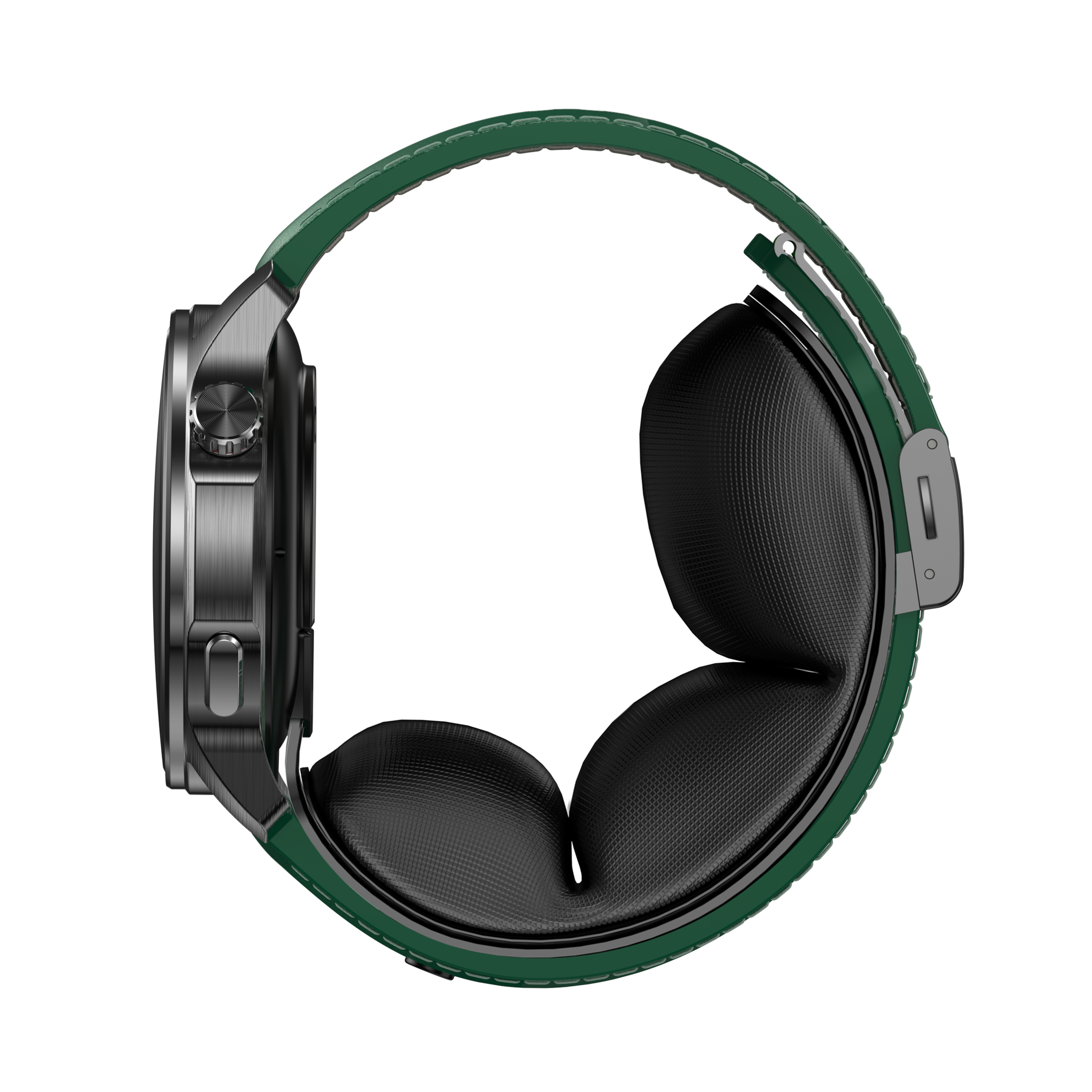

Integrated wrist airbag
The dedicated TPU airbag sits inside the cowhide and microfiber strap for the pump-driven measurement cycle.

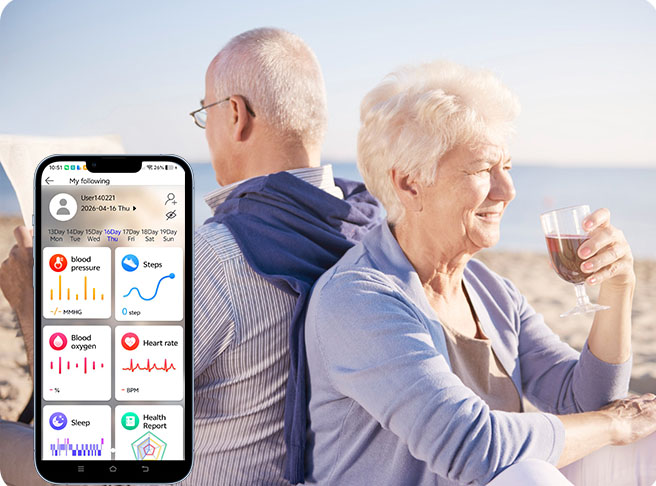

Remote-care view
The companion-app visual presents shared blood-pressure, activity, oxygen, heart-rate, sleep and report information.

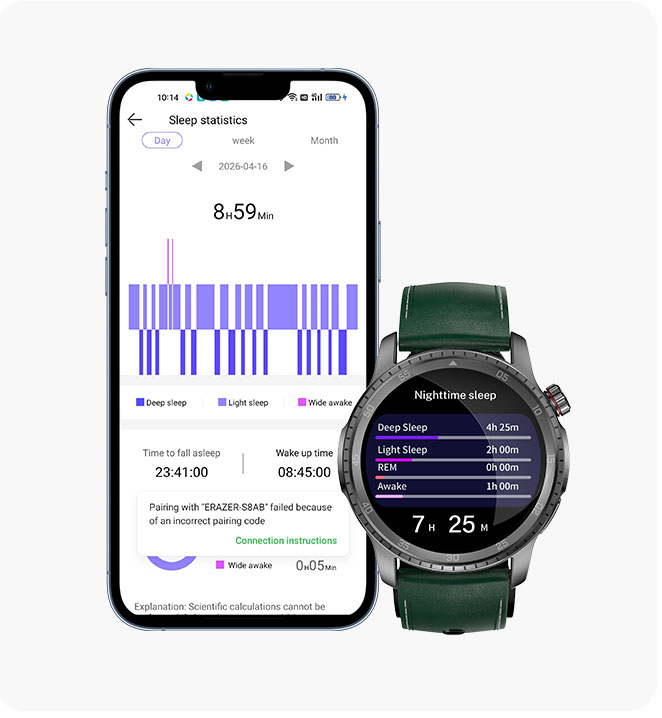

Sleep statistics
Daily sleep-duration and stage summaries are presented as wellness information rather than a diagnostic assessment.

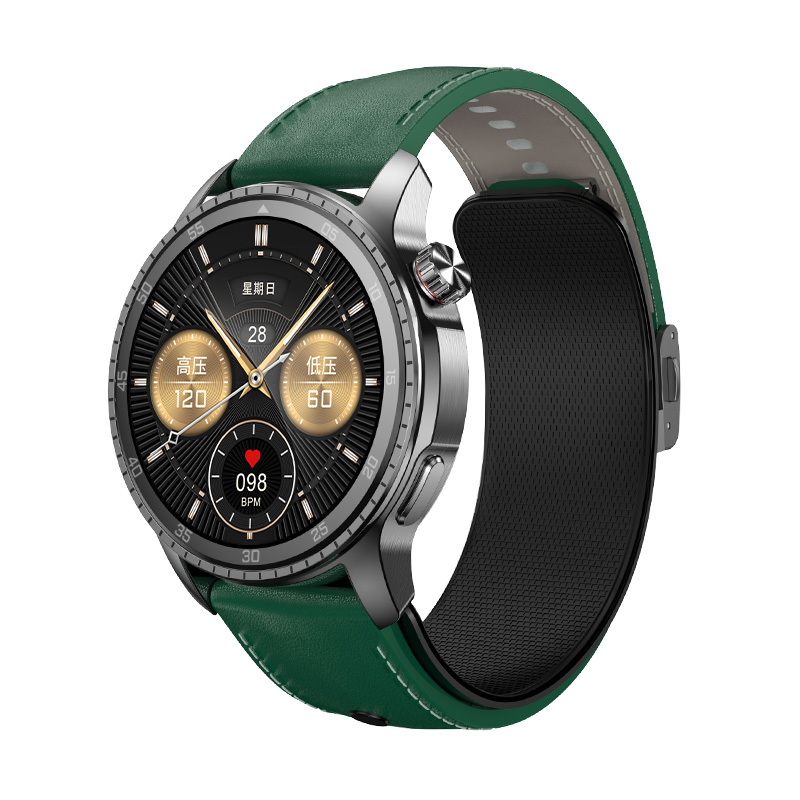

Designed for everyday wear
A round case and green leather-finish strap give the airbag platform a more conventional watch appearance.

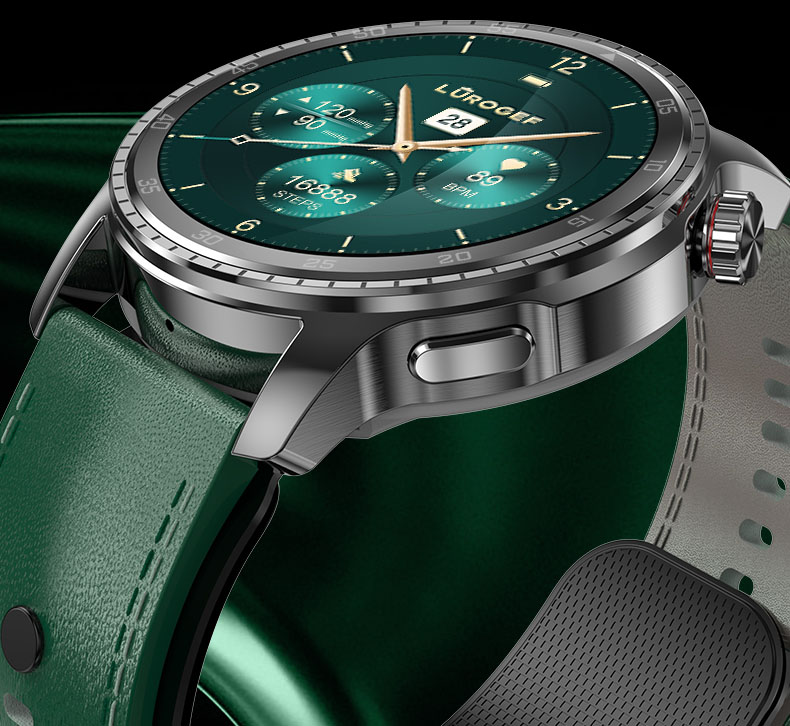

Stainless-steel and leather finish
The documented build combines a stainless-steel bezel, zinc-alloy middle frame, tempered glass and cowhide/microfiber strap.
Key Engineering Highlights
Model-specific architecture and material choices recorded in the VC61 specification.

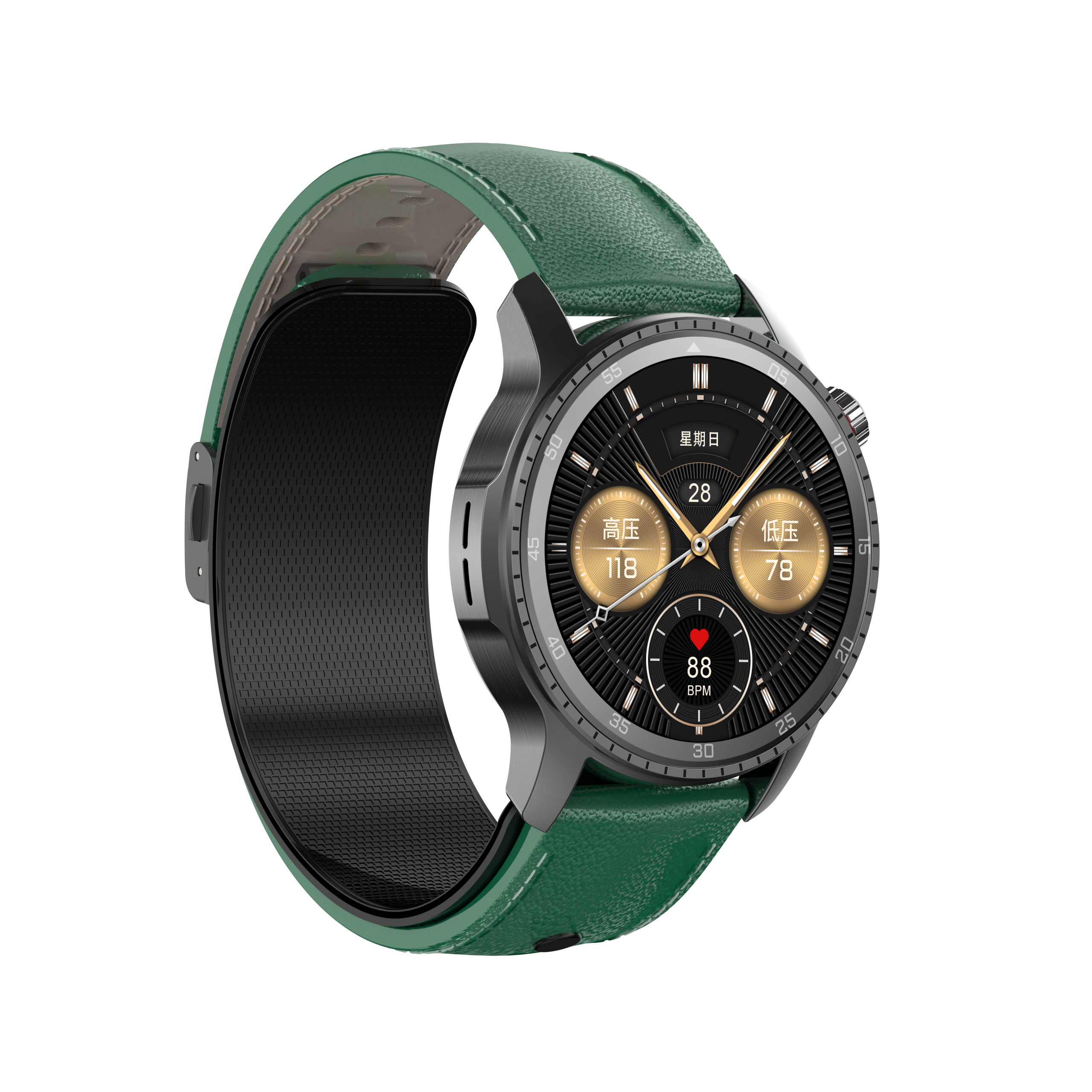

Air-Pump and TPU Airbag Path
The model documentation identifies an air-pump blood-pressure function and a dedicated TPU airbag integrated into the strap. This architecture description is not an accuracy claim.
Premium Materials & Ergonomics
Stainless-steel bezel, zinc-alloy middle frame, tempered glass and a cowhide/microfiber strap create the model's dress-watch appearance.
Bluetooth Companion Architecture
JL701X, embedded RTOS, PAH8316 optical sensing and a 500 mAh battery support the documented Bluetooth calling, app and everyday health-feature set.
Measurement Posture & Workflow
- 1. Fasten the strap comfortably and securely so the airbag sits consistently against the wrist.
- 2. Rest your elbow on a table, elevating the watch to align horizontally with heart height.
- 3. Trigger the oscillometric cycle from the screen and maintain steady, quiet breathing until pressure releases completely.
- 4. Review the reading on the AMOLED display. Companion-app synchronization depends on the approved software configuration for the project.
Operational Boundaries & Restrictions
- ✕ Water Ingress Boundary: IP67 — short-term shallow-water immersion only. Not a swimming permission, and not hot water.
- ✕ No Optical Glucose Claims: Device does not feature non-invasive blood glucose sensing technology.
- ✕ No Self-Diagnosis: The supplied wellness features and reports do not by themselves establish a diagnostic or treatment use.
Technical Specifications
Hardware parameters from our model documentation. They describe what the device is built from, not how accurately it measures — no accuracy record is held for this model.
| Specification Item | Details / Parameter |
|---|---|
| Product Model | VC61 |
| Core Platform / CPU | JL701X low-power wireless SoC architecture |
| Internal Memory | 128Mb (source specification notation) |
| Optical Sensor Module | PAH8316 high-sensitivity optical sensor |
| Operating System | Low-power embedded RTOS |
| Display Panel | 1.43-inch AMOLED circular touch screen, 466×466 resolution |
| Pixel Density (PPI) | 332 PPI (source recorded) |
| Battery & Power | 3.8 V / 500 mAh polymer lithium battery with NTC thermal protection |
| Charging Interface | Dedicated 4-pin magnetic charging & data interface |
| Structural Materials | Stainless-steel bezel & crown buttons, zinc-alloy middle chassis, tempered glass, plastic lower housing |
| Strap & Airbag | 24 mm cowhide / microfiber composite strap (137 mm long / 76.6 mm short) with integrated dedicated curved TPU airbag |
| Dimensions & Weight | 46.6 × 48.2 × 13.83 mm; approximately 89.2 g total weight (including strap and airbag assembly) |
| Packaging Specifications | Individual gift box 140×140×80 mm (388.3 g); Carton 50 units/ctn (20.6 kg, 73×29.5×43 cm) |
| Mobile Application | LUROGEF companion application (source download name: LuoJiefu); any white-label application or software interface scope is confirmed during project scoping |
| Water Resistance | IP67 — short-term shallow-water immersion only; not a swimming permission and not hot water |
| Connectivity Architecture | Bluetooth companion architecture with Bluetooth voice calling; this clean VC61 specification does not document standalone 4G or GPS hardware |
OEM & ODM Customization Scope
Start with the documented VC61 hardware, then confirm the branding, software, packaging and documentation scope for your project.
Mechanical & Casing
Confirm available bezel, frame, strap, airbag and logo treatments against the approved sample configuration.
Firmware & Interface
Scope watch faces, boot presentation, supported languages and menu presentation without implying unverified health algorithms.
Companion Apps
White-label application requirements, UI presentation and any customer-cloud connection are scoped per project; no interface inventory is published for this model.
Packaging & Documentation
Confirm packaging, manuals, quick-start materials and the model-specific quality or regulatory documents available for the target market.
